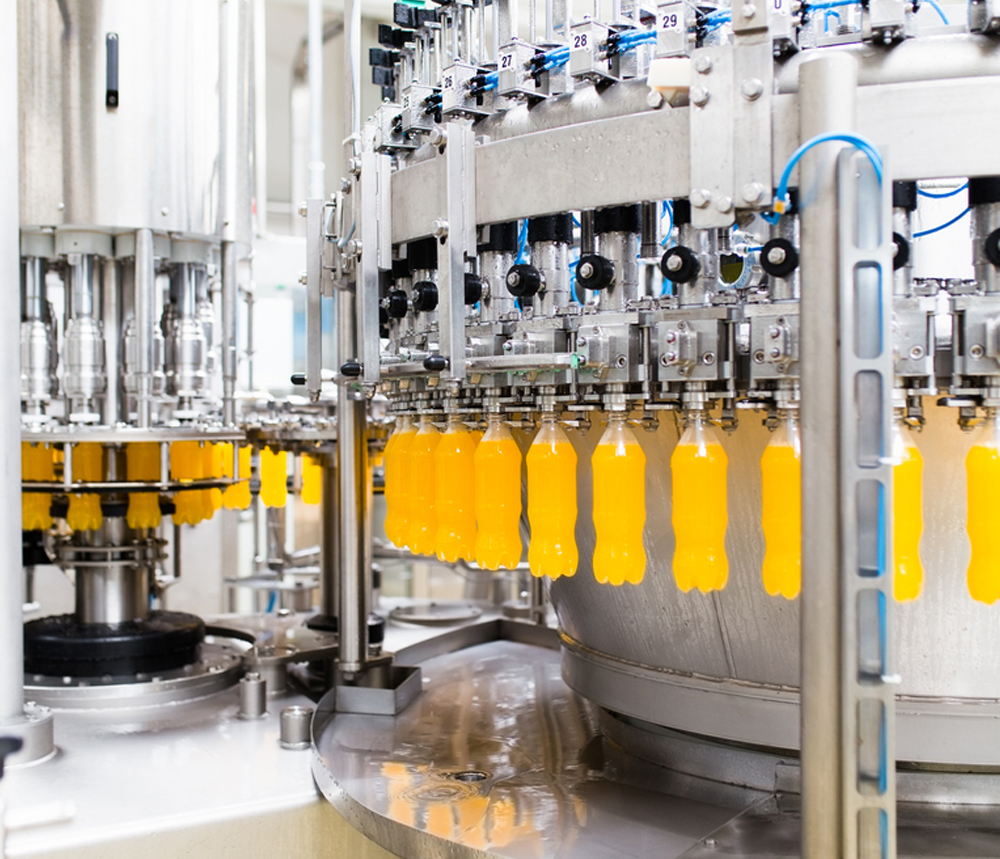

Pet Juice Bottle Filling Machine
Gravity is used to fill the container. RECIRCULATING VALVE (mechanical valve) that maintains a consistent 10-15% juice temperature up to the tip of the filling valve, ensuring product safety without the need for user intervention. Because of its superior design, this valve has a bottom shut design and a zero drop feature after the filling operation. It also includes CIP characteristics and fills at a very fast speed.
The alternative valve option is a top shut straight valve with recirculating from the filler bowl through a pump; this is likewise a cost-effective design. For exceptionally precise filling, a flow meter in conjunction with a pneumatic actuator valve (electronic filling valve) is now available.

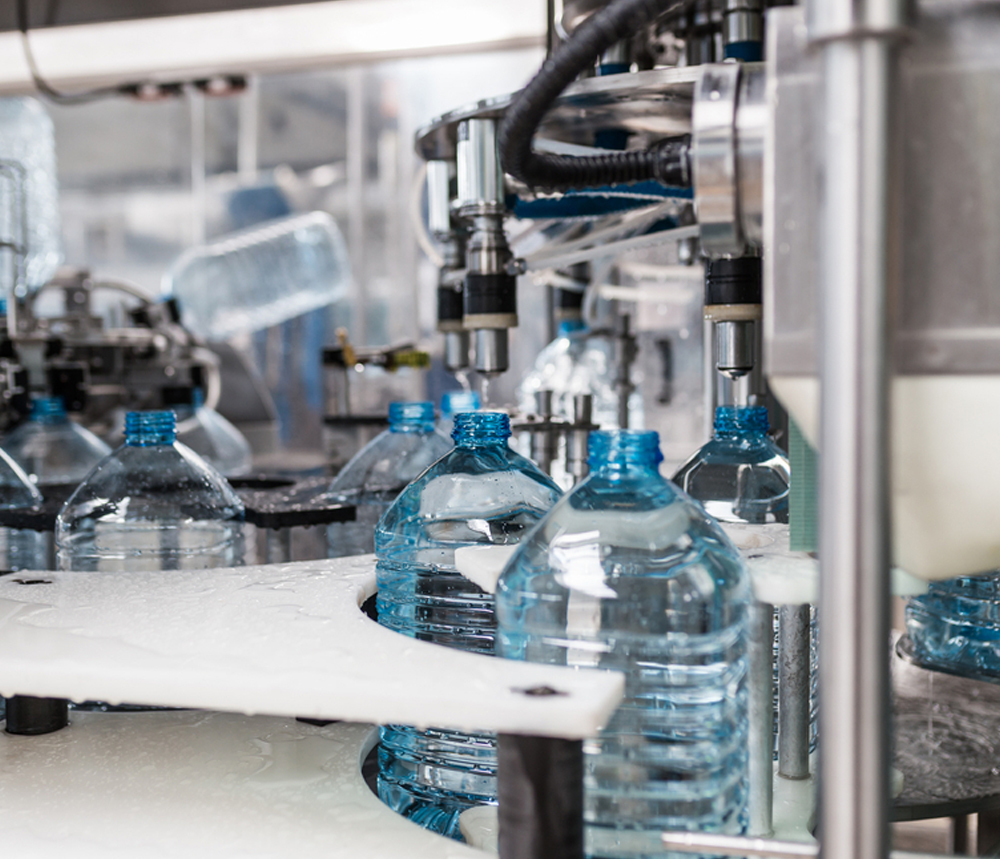

Mineral Water Bottle Filling Machine
It has a capacity of 24 / 30 / 40 / 60 / 90 / 120 / 250 / 300 BPM & above. It also facilitates automatic, rinsing, filling & capping operations. It also has a cap hooper of 1000 caps capacity. Also, it allows a power consumption of 6 to 7 Hp and higher. The approximate weight is 1500 Kg. There is an inbuilt shrink tunnel inside it.
There is a rotary neck holding an air blow conveyor on the out-feed with an AC driver and an inspection table with a lighting system. The speed control is handled and managed by speed control by AC drive. It can handle all bottle sizes ranging 500-ml to 2000-ml. It is totally hygienic bottling.

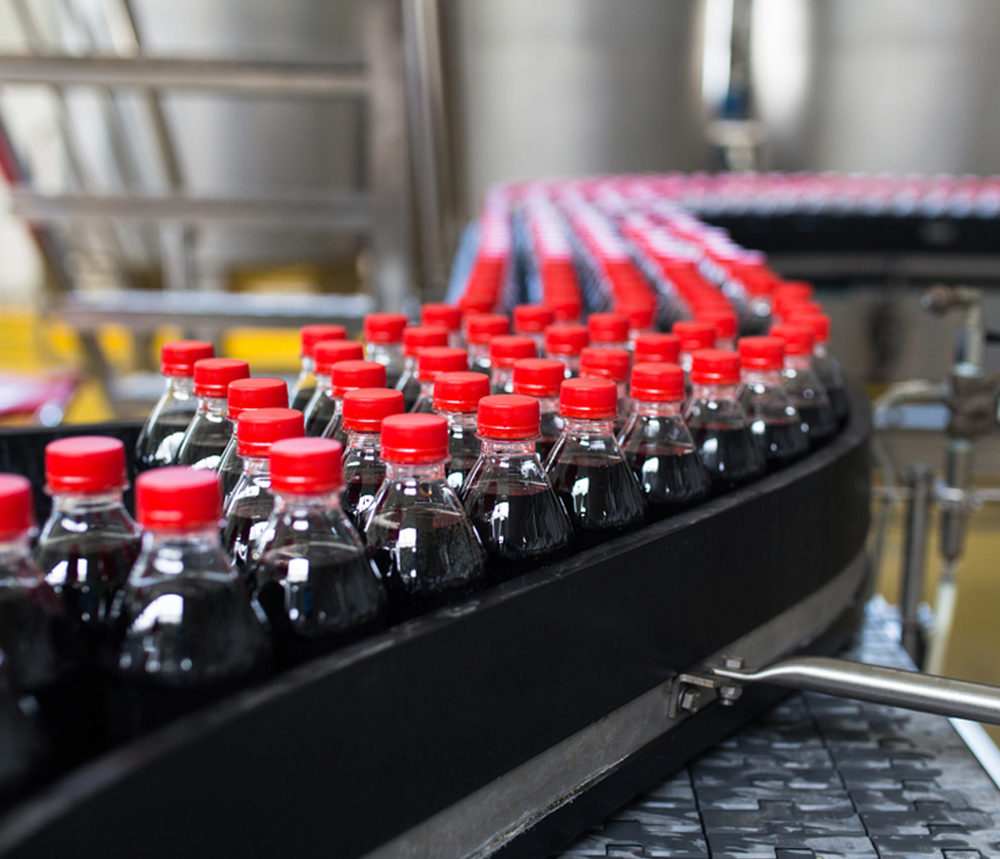

Soft Drink Filling Machine
The filling procedure is carried out under CO pressure, using the most up-to-date state-of-the-art ULTRA VALVE (mechanical valve) with a dual snift, one for pre-evacuation or flushing before filling the bottle, and the other for bottle headspace snifting. This valve has full CIP capabilities. Because of the positive lift mechanism, this valve fills at a very fast rate. The most recent alternative is a flow meter combined with a pneumatic actuator valve (electronic filling valve) for exceptionally precise fill.

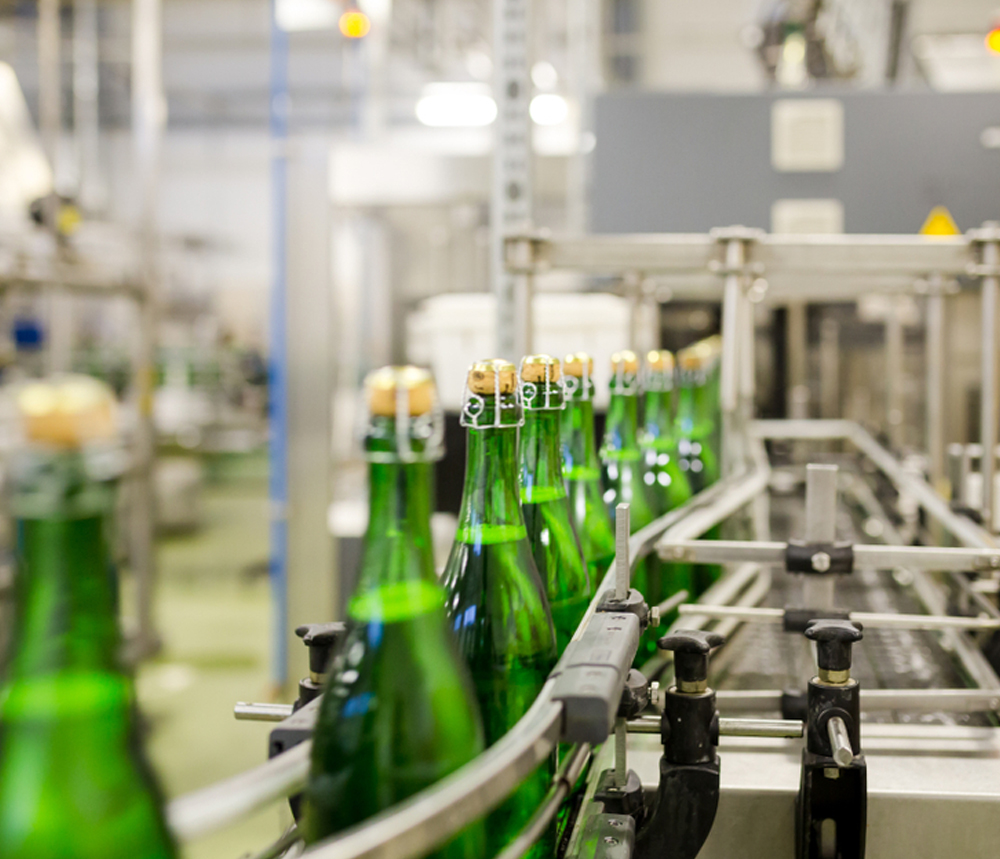

Glass Bottle Filling Machine
The machine has a capacity of 100 /150/ 200 JPH & Above. It also facilitates functions like automatic rinsing, filling & capping operation. The power consumption is allowed upto 2 to 4 KW and higher. The approximate weight is 500 Kg.
The dimensions of the machine are L-10 x B-4 x H-8 feet. It has 2 filling heads and 4 washing stages. The capacity of the machine is 20 Liter. The diving type filling nozzle ensures no spillage water. The cap pressing by pneumatic cylinder is also there for proper pressing. The machine also has a high pressure and low pressure solenoid valve for the filling system.
